Stylo 160

For the simple, yet adjustable and adaptable head positioning solution

Stylo 160 is crafted to achieve the best of both worlds: simplicity and ease of adjustment, yet highly adjustable and versatile. Clever use of twin ball joints means the head pad can be orientated to where the optimal support is required, through an available 45° of pitch; coupled with two hinge joints that offer infinite up and down, and forward and backward adjustment. The finished product… an extremely versatile mechanism that allows true adjustment of the pad position, creating a solution that is completely adaptable to the user. Available in flip-back option for ease of transfers.



Stylo 260

Infinite adjustability for the most complex situations!

Stylo 260 is engineered to offer ultimate and unparalleled adjustability to meet the most complex head positioning needs! With simple adjustment and intuitive design, it brings simplicity to the most complex of cases. Similar to Stylo 160, clever use of twin ball joints means the head pad can be orientated to where the optimal support is required, through an available 45° of pitch; coupled with two hinge joints that
offer infinite up and down, and forward and backward adjustment. In addition, it offers incredible reach with length-adjustable links. Available in flip-back option for ease of transfers.

Head Support hardware with extensive adjustability.

The Stylo Head Support has been designed to provide superior head and neck control for individuals with basic and moderate needs, through to complex postural asymmetries. This next generation head support technology from Spex Seating provides superior adjustability and strength, with its extended links and ball and socket joints ensuring extra strength to endure greater impact forces. In-built adjustment possibilities allows for better positioning of the head and neck in virtually any position.

Ultimate and unparalleled adjustability to meet the most complex head positioning needs!

The extended adjustable links, together with ball and socket joints allow for precise head positioning as they permit the head/neck pad to be positioned virtually anywhere within its length. Increased forward reach with 160mm (Stylo 160) or 260mm (Stylo 260) available. Improved ball mount design allows incredible range of angle adjustment, with total adjustment possible up to 270°.

FEATURES:

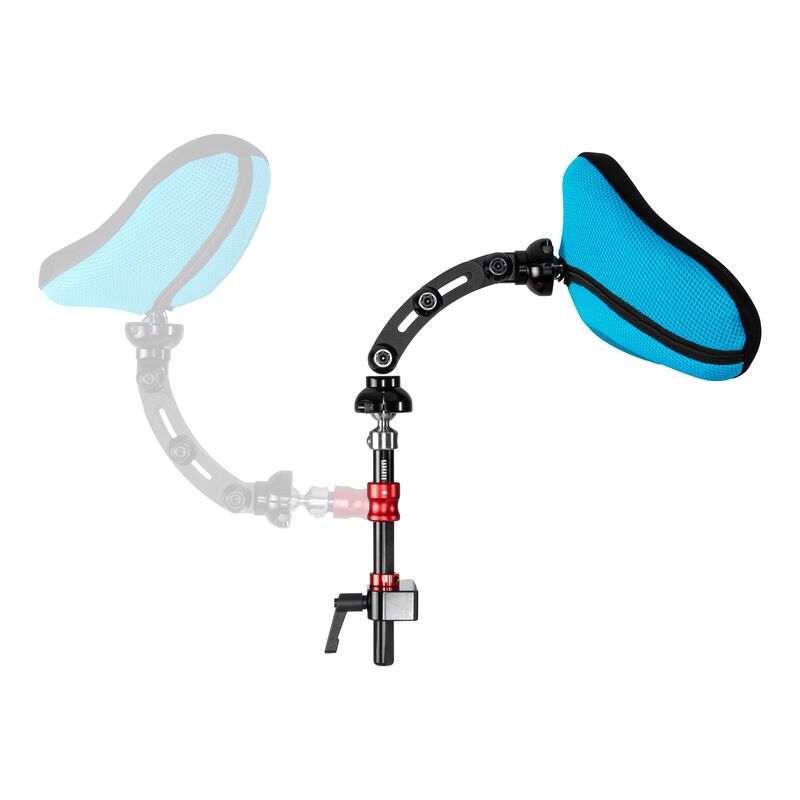

  • Flip-back option - Available on both the Stylo 160 and 260, the flip-back mechanism option is an excellent choice for individuals who require assistance with transfers in and out of the wheelchair. Simply slide the red collar up to disengage the stem and swing backwards.
  • One tool for all adjustments - For ease of Stylo adjustment and fine-tuning to the correct position, only one tool is required – a 5mm Hex/Allen Key.
  • Sturdy positioning - Machined aluminium stem design incorporates two flat edges, ensuring no stem rotation for a fixed position that won’t slip. Extra strong design clamps up tightly to prevent lateral movement.
  • Super quick installation - Head support stem installs simply and easily into the mount, and easily removes when required.

Clinical Benefits:

Designed for the individual who:

  • Presents with increased thoracic or lumbar curvature of the spine and therefore requires the head support to be placed afar from the back support.

  • Presents with rotation or lateral flexion of the trunk and may require the head support to be positioned in a specific spot, offset from the back support.

Contact us for a comprehensive brochure on the full Stylo and Headrest Range



General
Stylo 160
Stylo 260
1274-1252-000
1274-1282-000
1274-2252-000
1274-2282-000
160mm
260mm
135mm
160mm
145mm, 80mm for Flip-Back
145mm, 80mm for Flip-Back
200mm
250mm
45° of head support pad in all directions within the ball joint. The ball joint is also on a hinge which offers an additional 180° in up and down angle!
45° of head support pad in all directions within the ball joint. The ball joint is also on a hinge which offers an additional 180° in up and down angle!
745g
830g
